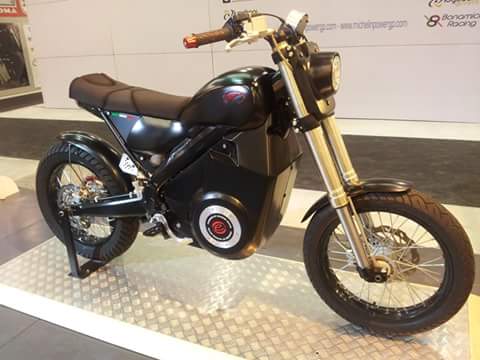

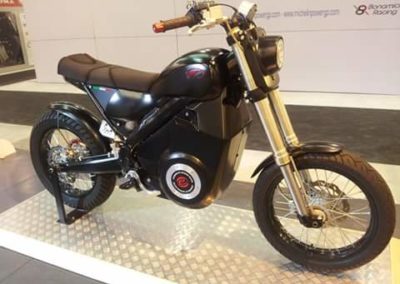

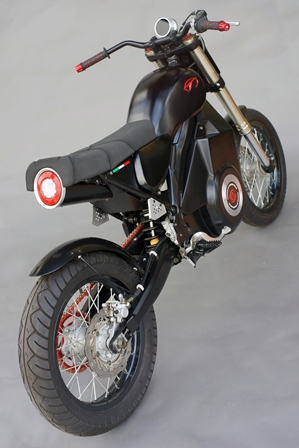

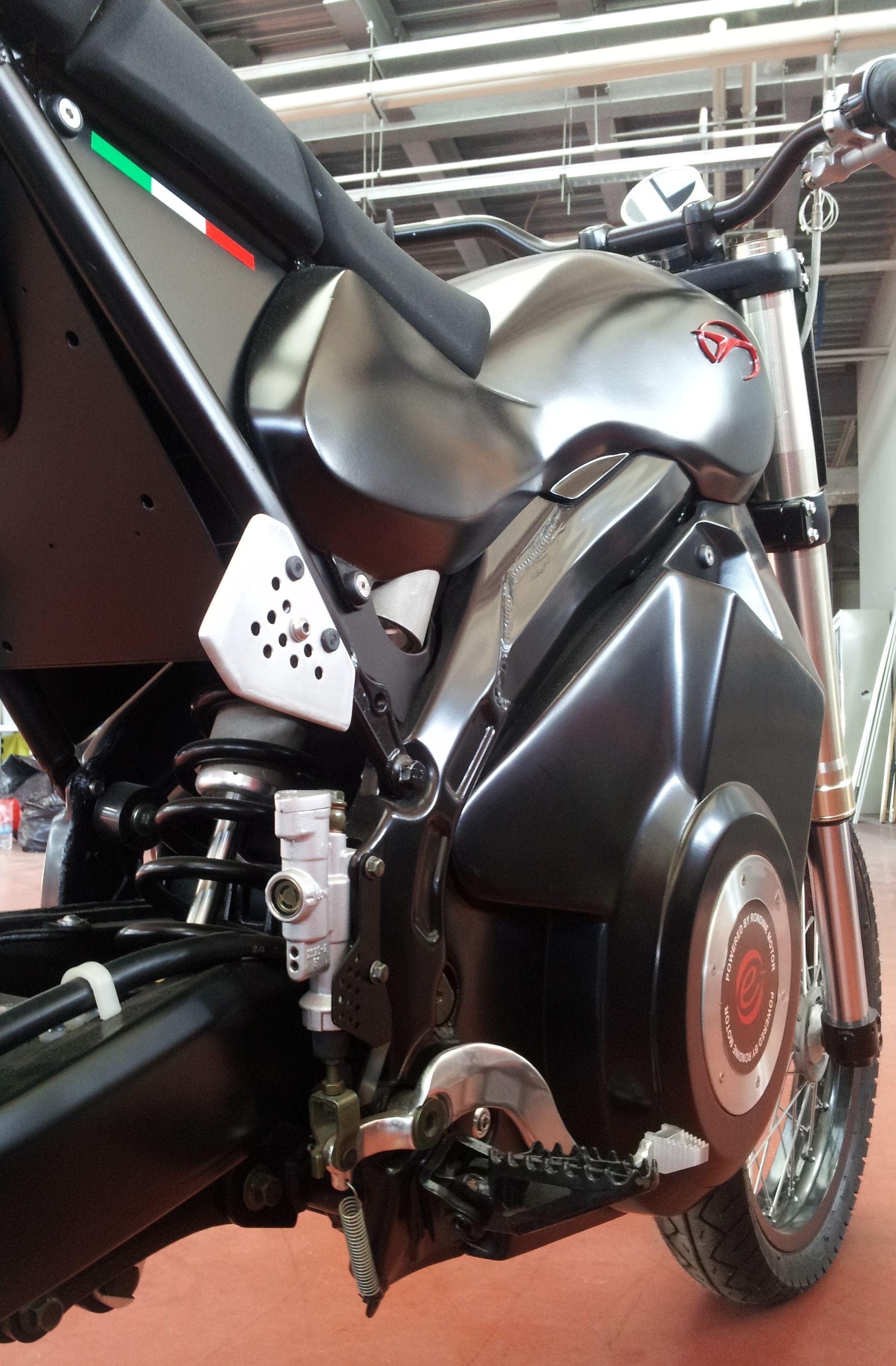

Elettra Cafè Racer

Specifications/Specifiche Tecniche

Motor/Motore Electric Brushless Permanent Magnet 74Vdc / Elettrico Brushless Magneti Permanenti 74V
Power/Potenza 13 Kw /17,7 CV 4600gm – 28Nm
Controller/Centralina Syncrodrive –Seavcon – Can bus system
Batteries/Batterie 2,2 Kwh- LI.PO
Full Charge time/Ricarica completa 3 hours/3ore
Life Cycle/Ciclo di vita 1500/2000 Deep Charge/Carica completa
Frame/Telaio Twin spar Perimeter/Perimetrale
Performance/Prestazioni City Map: 70 Kmh – Sport Map: 100 Kmh
Range 50/80 Km

Suspensions-Brakes-Tyres/Sospensioni-Freni-Gomme –

Front Suspension/Sospensione ant. Hydraulic, fully adjustable Forks – 910mm/Idraulica, completamente regolabile – 910mm
Rear Suspension/Sospensione post. Hydraulic piggy back reservoir, fullyadjustable shock – 500mm/Serbatoio piggy post., completamente regolabile – 500mm
Front brake/Freno ant. Hydraulic 240mm single disc – single piston caliper/Disco 240mm Pinza idraulica a singolo pistone
Rear Brake/Freno post. Hydraulic 230mm single disc – dual piston caliper/Disco 240mm Pinza idraulica a doppio pistone
Front rim-Tyre/Cerchio ant.-gomma 100-17″- 110/70/17 Aluminium-Magnesium – 7116
Rear rim-Tyre/Cerchio post.-gomma 100-18″- 130/70/17 Aluminium-Magnesium – 7116

Dimensions/Dimensioni
Length/Lunghezza 2120mm .
Width/Larghezza 820mm
Height/Altezza 1245mm
Wheelbase/Passo 1440mm
Ground Clearance/Distanza dal suolo 320mm
Seat Height/Altezza sella 920mm
Weight/Peso 115kgs
